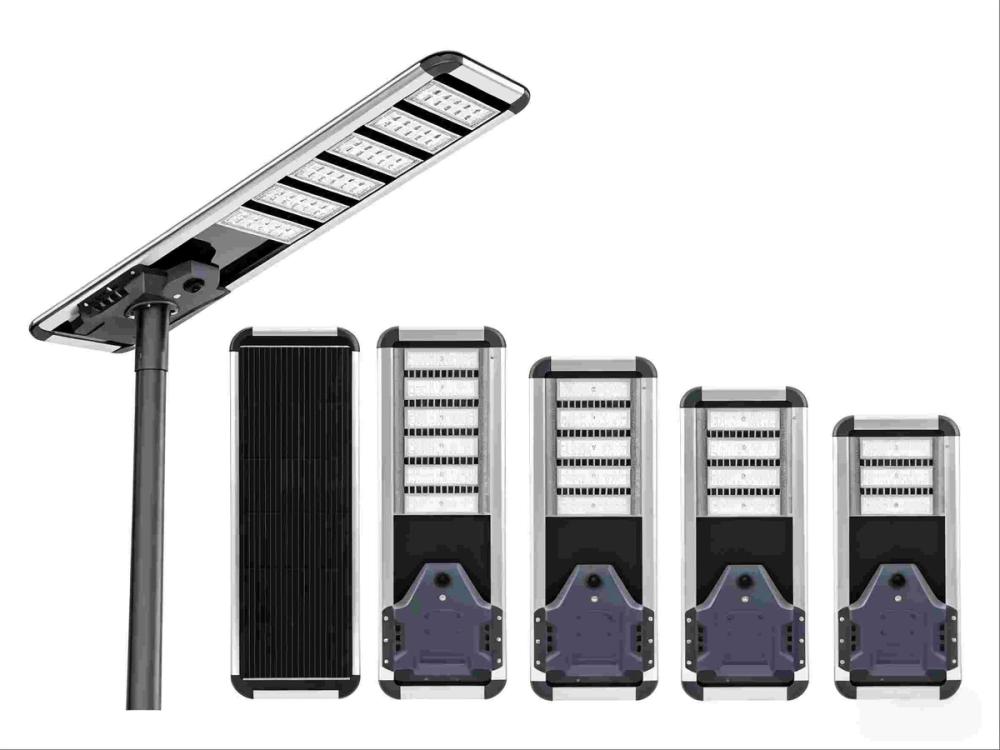

Overview Jinborui's all-in-one solar LED street light integrates the solar panel, LiFePO4 battery, MPPT charge controller and LED engine into one factory-assembled body. No external wiring, no grid connection: mount on pole and go. Configurations span 30W-200W, with a 25.6V Mega flagship line up to 300W for government-scale projects. 12+ years of manufacturing experience, CE / RoHS / IEC62133 / ISO 9001 certified, full OEM/ODM available. Key Features True all-in-one design: PERC monocrystalline panel (40W-400W, cell efficiency 22%+, 25-year lifespan), battery, controller and LED pre-assembled in a die-cast aluminum housing. Long-life LiFePO4 battery: 20Ah-200Ah, 2000+ charge cycles, 5-8 years service life, 3-7 days rainy-day backup, thermally stable with low-temp guard. Bright and efficient: luminous efficacy 160 lm/W (200 lm/W on Mega), LED lifespan over 50,000 hours, CRI 70+ (80 optional), CCT 3000K-6500K, beam angle 120/150. PIR motion sensor (8-12m): 100% brightness on motion, dims to 30% standby. Auto dusk-to-dawn light sensor; programmable time control optional. Built for extremes: IP66 waterproof, IK10 impact resistant, wind resistance 60 m/s (Grade 12 typhoon), operation from -30C to +65C. MPPT controller with 98%+ charging efficiency, over-voltage protection. Optional 4G/5G IoT: remote monitoring, group dimming, fault alerts; 10,000+ nodes per platform, sub-1s latency. Hot-dip galvanized Q235 poles, 4m/5m/6m/7m/8m, single-arm or direct mount, 0-15 adjustable angle. Specifications (Standard / Mega)
| Item | Standard | Mega 25.6V |
|---|---|---|
| LED power | 30-200W | 60-300W |
| Efficacy | 160 lm/W | 200 lm/W |
| Battery | 20-200Ah | 50-200Ah |
| Panel | 40-400W | 100-300W |
| Protection | IP66 / IK10 | IP65/66 |
| Warranty | - | 5 years |
Applications Residential roads, highways, parking areas, rural electrification, parks, campuses, ports and government infrastructure. Four families: Slim Integrated 30-60W (pathways), High-Lumen Split-Arm 80-120W (arterials), Smart IoT edition, Municipal Heavy-Duty 150-200W. DIALux simulation and bidding documents available on request. Getting Started & Pricing Quote-based: send your road width, pole height and target wattage; engineers recommend the best configuration, then confirm OEM/ODM branding at quotation stage. Contact via streetlightpro.com.
